Versatile Bio - Master I/O List

A list of all inputs and Outputs for the Versatile Bio - Biosignal Amplifier


Amplifier connectors:

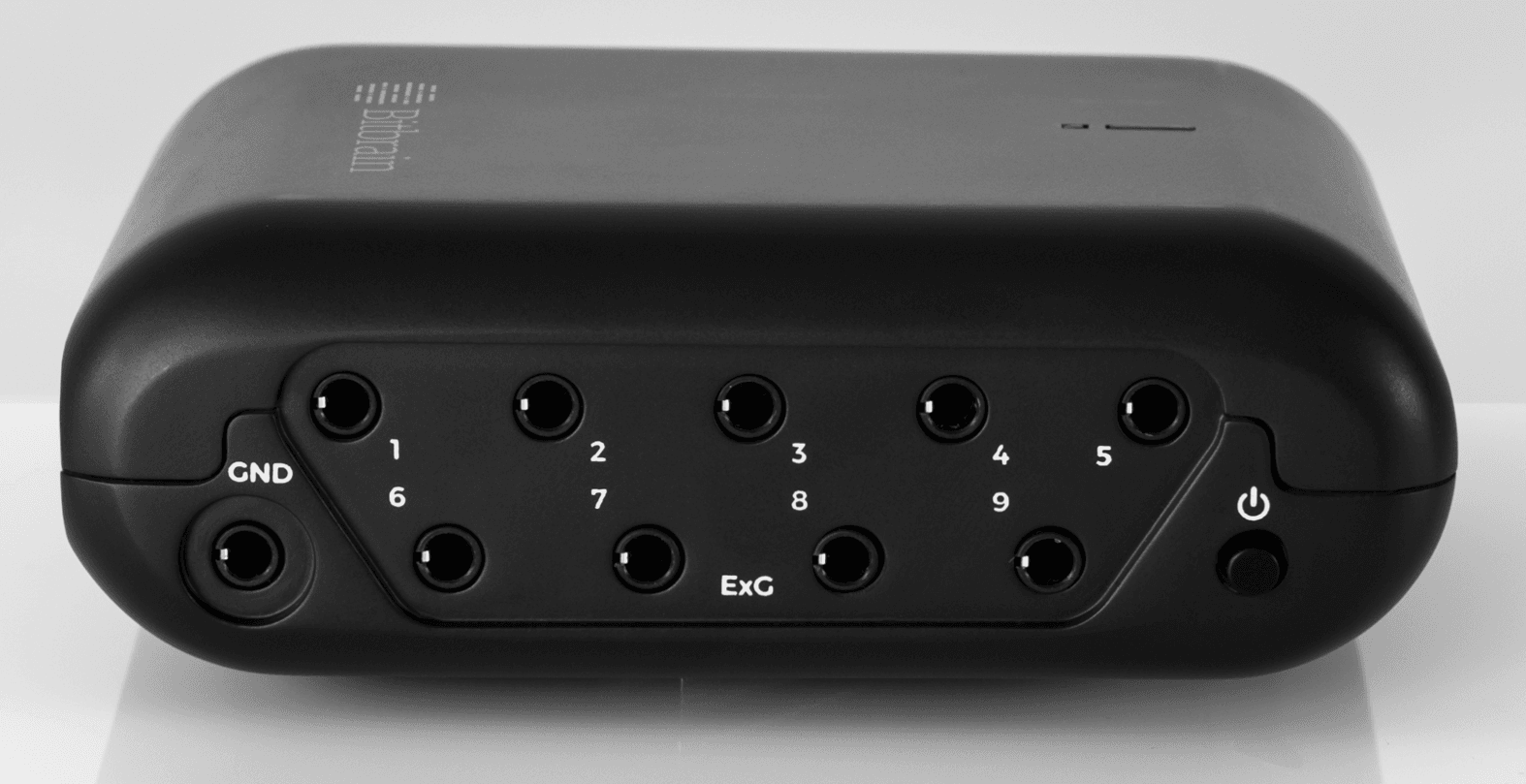

  1. ExG - (9 X 3.5 mm inputs, plus 3.5 mm ground)

    1. Electrocardiogram (ECG)
    2. Electromyogram (EMG)
    3. Electrooculogram (EOG)
  2. Digital Input (1 X 2.5 mm)
    1. Response button box
    2. Pedal
    3. Jack-to-jack cable
  3. Digital Output (1 X 2.5 mm)

    1. Parallel cable
    2. Jack-to-jack cable
  4. Digital AUX (2 X 2.5 mm)
    1. Inertial Measurement Unit (IMU)
    2. IMU Multiplexer
    3. Global Positioning System (GPS)

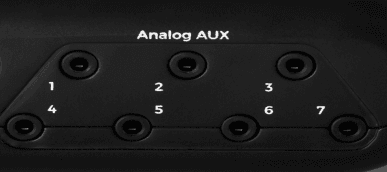

  5. Analog AUX (8 X 2.5 mm)
    1. Photodiode
    2. Respiratory effort band
    3. Respiratory air flow
    4. Electrodermal Activity Sensor (EDA / GSR)
    5. Temperature
    6. Pulse (BVP)
    7. Audio / Snoring Sensor
