Versatile Bio sensor guide: Duplexer

Using the duplexer on the Versatile Bio system

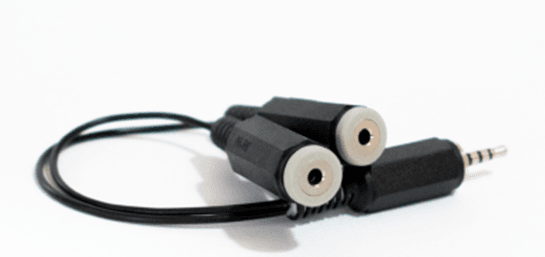

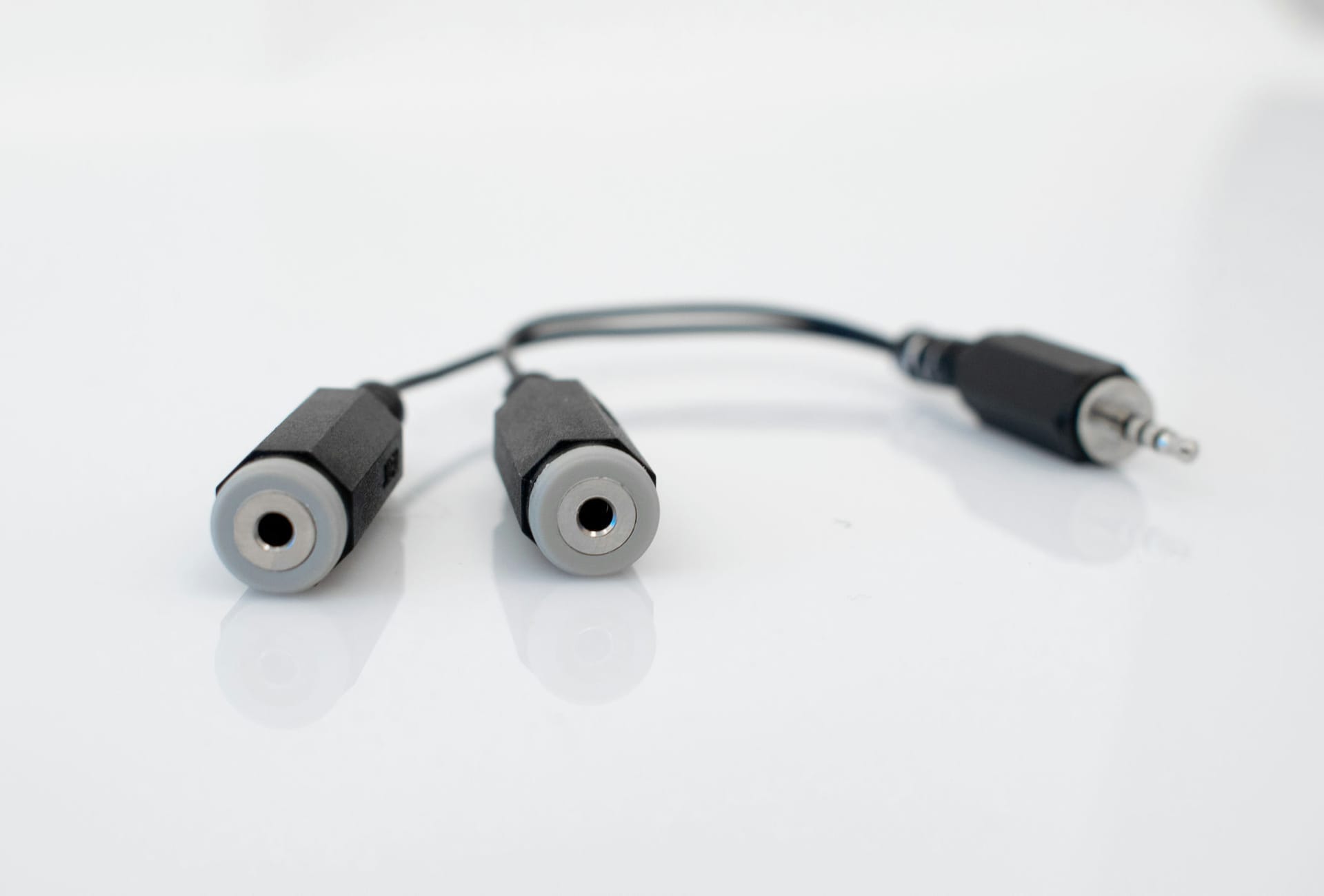

Bio sensor Duplexer

The Duplexer accessory allows synchronisation between a Versatile BIO and two Bitbrain devices with Dig input.

How to use:

For connection, the jack is connected to the D out output of the Versatile BIO device. A TTL Trigger BBT cable is then connected to each jack input and then to the Dig input of the Bitbrain equipment being used.

Digital Auxiliary Input
