Versatile Bio Sensor Guide: TTL trigger cable

Using the Bitbrain TTL on the Versatile Bio system

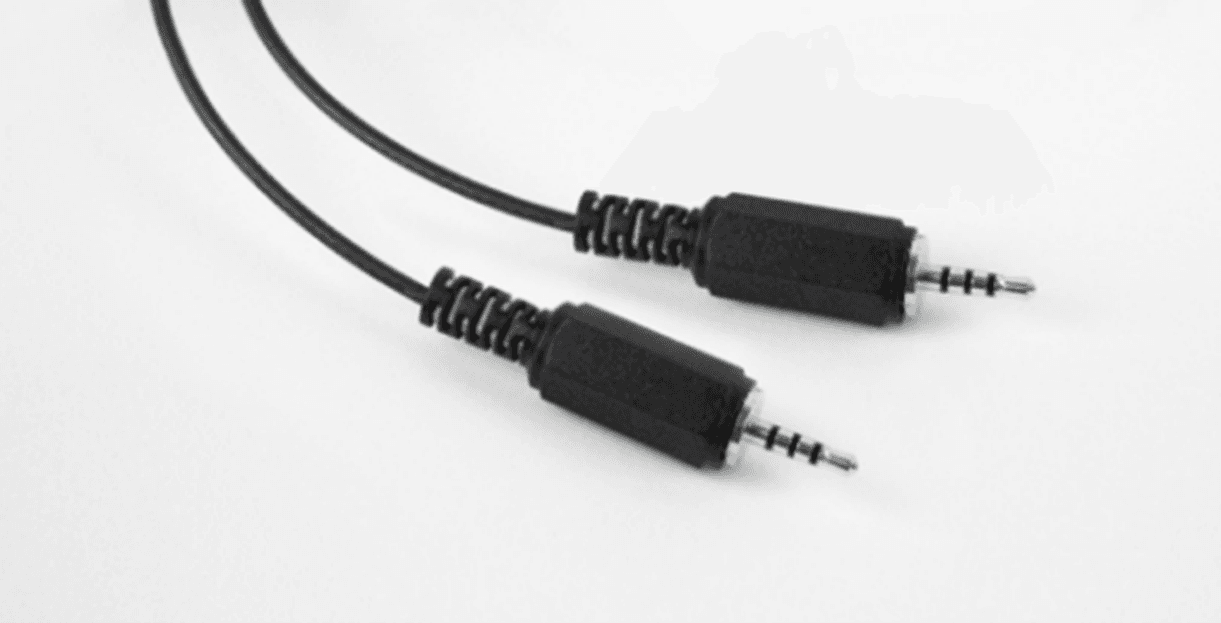

The TTL Trigger BBT accessory allows synchronisation between a Versatile BIO amplifier and Bitbrain equipment with Dig input.

How to use:

To make the connection, connect one end of the cable to the D out input of the Versatile BIO amplifier and the other end to the Dig input of the Bitbrain device being used.

Connector on Versatile Bio:

Digital Input
