Hero EEG layout
Understanding the electrode layout for the Hero dry EEG system
Product Discontinuation Notice
Please note that this product has been discontinued and is no longer available. If you have any questions, please contact our sales team at [email protected]. Thanks for your understanding. We invite you to discover alternative solutions in our catalogue.

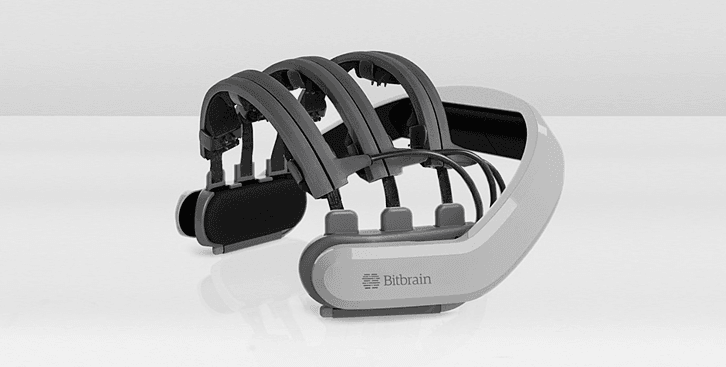

The Hero includes 9 EEG sensors, 1 linked ear reference (A2), ground (GND) and reference (REF) *
The EEG sensors are located at positions FC3, FC4, C3, Cz, C4, CP3, CPz, CP4 according to the international 10-10 EEG system.

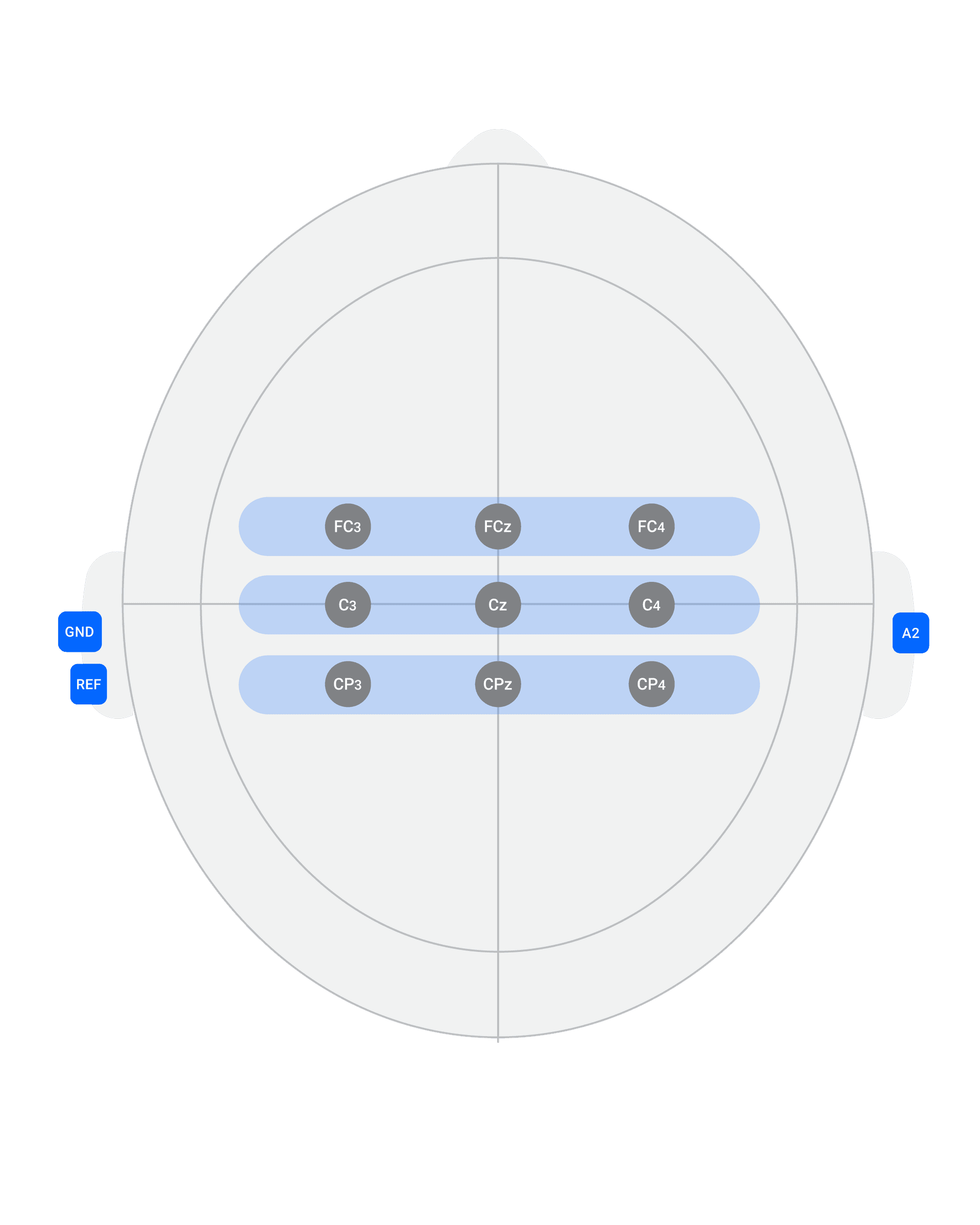

Channel Layout:
Channel 1 | FC3 |
Channel 2 | FCz |
Channel 3 | FC4 |
Channel 4 | C3 |
Channel 5 | Cz |
Channel 6 | C4 |
Channel 7 | CP3 |
Channel 8 | CPz |
Channel 9 | CP4 |
Channel 10 | A2 |
* There are two references A2 and REF to establish a crossed reference.
For other Minimal EEG systems, see Comparative Minimal EEG Electrode Layout.
