Diadem EEG Layout

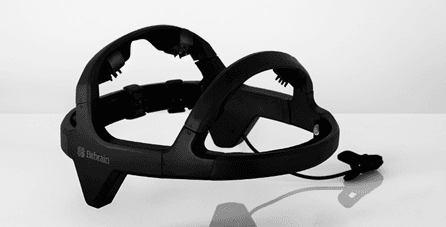

Understanding the electrode layout for the Diadem dry EEG
The Diadem includes 12 sensors, plus ground and reference

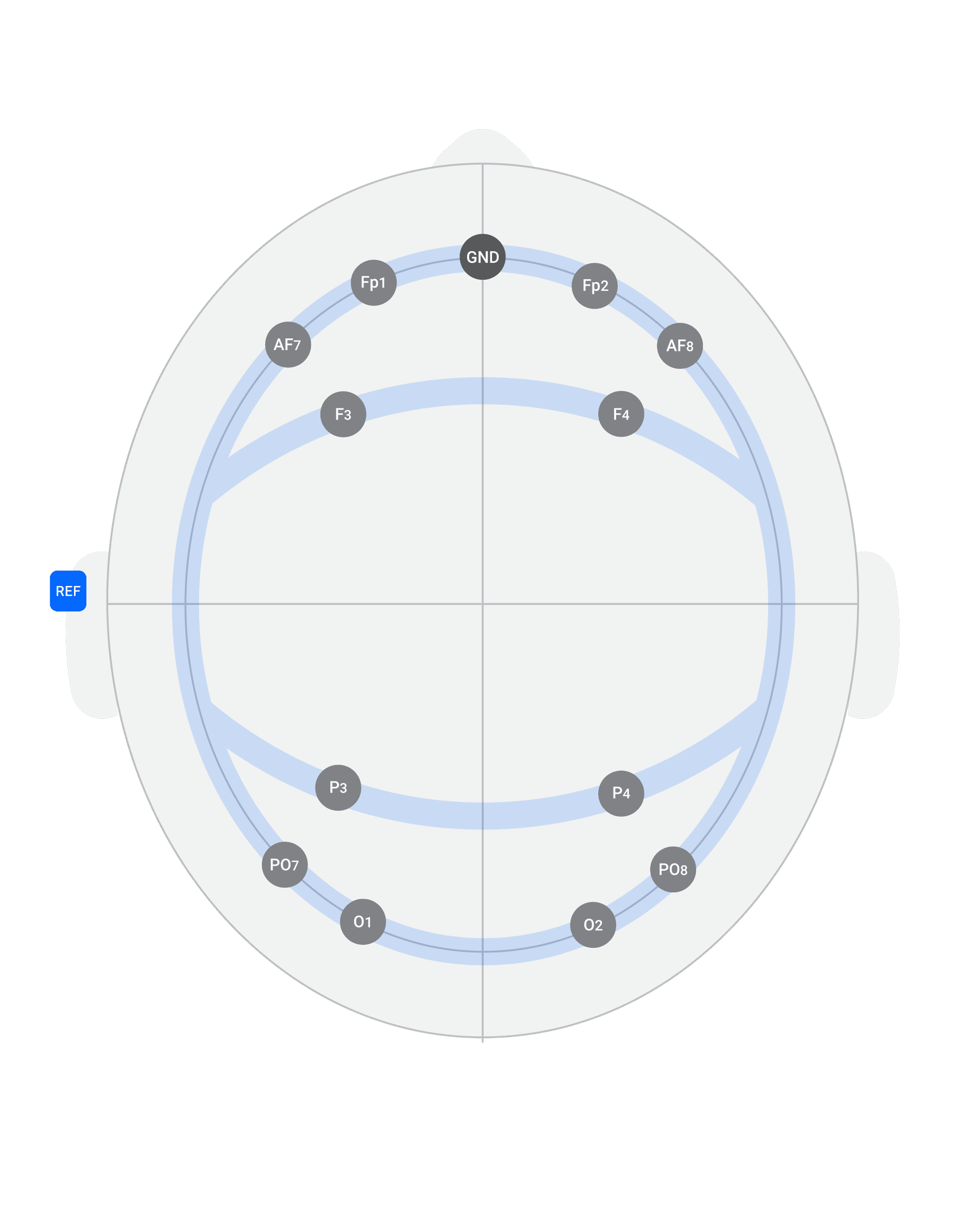

The sensors are placed at positions AF7, Fp1, Fp2, AF8, F3, F4, P3, P4, PO7, O1, O2 and PO8, according to the international 10-10 standard.
Channel Layout:
| Channel 1 | AF7 |
| Channel 2 | Fp1 |
| Channel 3 | Fp2 |
| Channel 4 | AF8 |
| Channel 5 | F3 |
| Channel 6 | F4 |
| Channel 7 | P3 |
| Channel 8 | P4 |
| Channel 9 | PO7 |
| Channel 10 | O1 |
| Channel 11 | O2 |
| Channel 12 | PO8 |
For other Minimal EEG systems, see Comparative Minimal EEG Electrode Layout.
